20 Prandtl's tip with rotation

20.1 Prandtl's tip plotted against the non-dimensional radius x

So far we looked at Prandtl's approximation of the isolated mass flow factor K (x), as defined in (17.2).

We will now look at the combined thrust reduction factor G (x). With Prandtl's approximation F ′ (x) for K (x) ( slightly adapted here, as indicated by the prime ), we define the obvious approximation to the G (x) of ( 17.6 ) :

G ′ (x) = {cos}^{2} φ . F ′ (x)

(20.1)

First we look at the two terms of this equation separately.

Figure 20.1 shows F ′ (x) at a horizontal scale different from either figure 19.6 or figure 19.7. Those figures were at the scale of B . X, which is natural to Prandtl's tip function, and at the scale of r / R which is natural for different propellers of the same diameter. The new figure shows F ′ (x) on the x scale, which is the natural scale for cos²φ. Drawn on this scale, cos² φ is identical for all propellers. It is shown in the figure as a red dotted line.

The blades have a tip radius of X ( the capital X ), so the blades vary in length with X on the graph. On this scale, Prandtl's tip has the same shape with x only for propellers with the same number of blades.

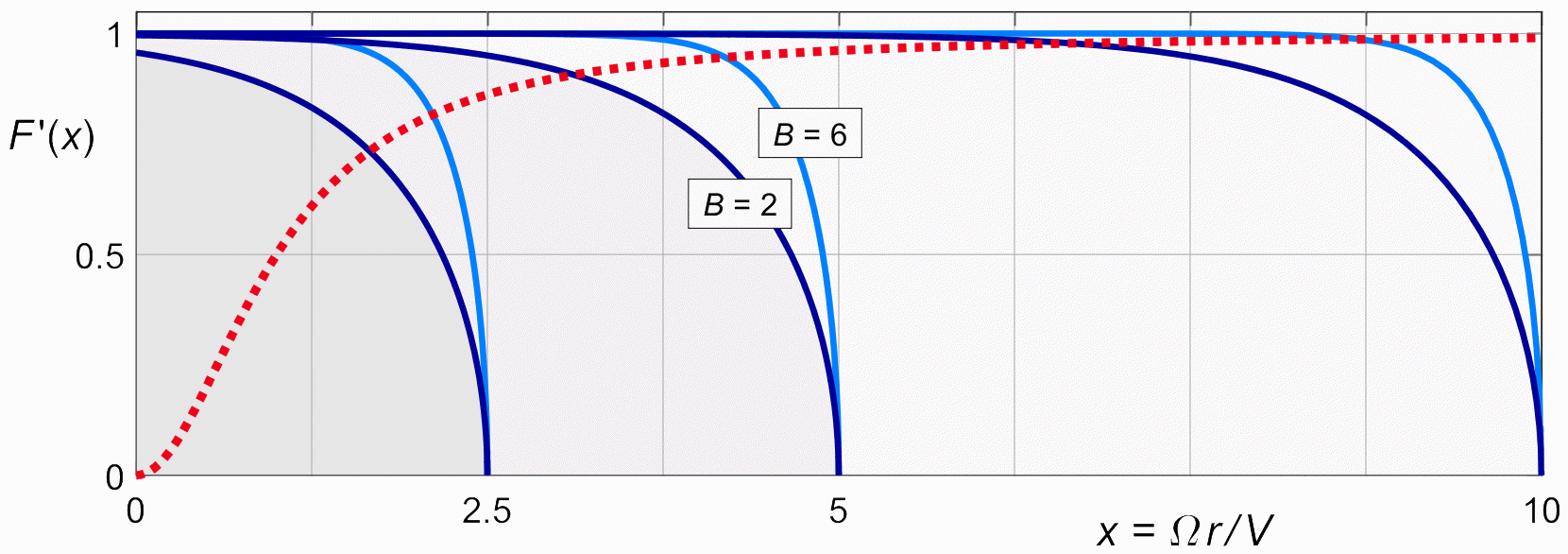

Figure 20.1 : Prandtl's tip shape and cos²φ on the x scale.

20.2 The combined reduction

Figure 20.1 shows that the two reductions partly overlap.

When they combine according to (20.1), both terms will contribute to the reduction at a given radius together. The shape at the tip is mostly determined by the F ′ (x) term, not so much by cos²φ, since that factor approaches 1 for large values of x. The shape near the root on the other hand, is mostly determined by the cos²φ term, since the value of F ′ (x) is nearly 1 near the root.

In the middle of the blade the two reductions may overlap, esoecially for small values of the product B . X. If the overlap is large, then the combined shape factor is strongly reduced along the whole blade.

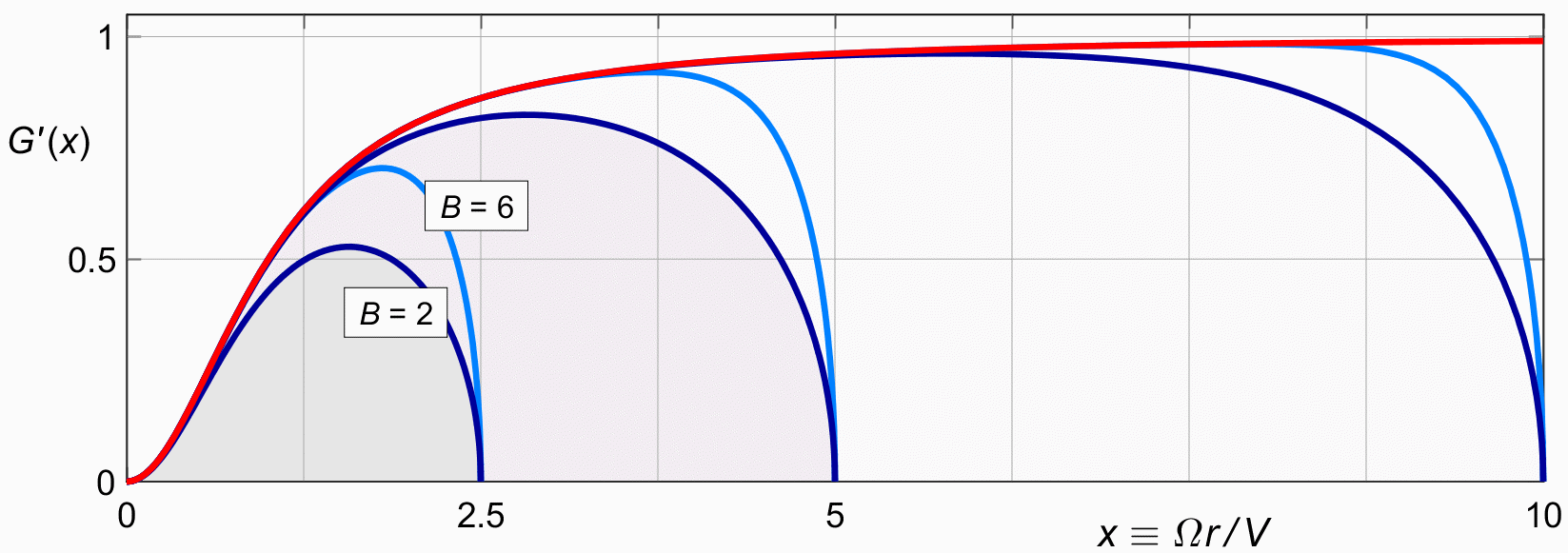

Figure 20.2 : Prandtl's tip shape combined with cos²φ.

20.3 The overall reduction

In (17.9) we defined the overall thrust reduction factor κ_G, by analogy with the κ_φ of (11.3).

We can now calculate a Prandtl-approximate version of κ_G, which we shall call κ_G′ :

κ_{G ′} (X) \equiv \frac{1}{X^{2}} . \int_{0}^{X} {cos}^{2} φ . F ′ (x) . 2 x . d x

(20.2)

There is no simple analytical solution for this integral, but we have relatively simple equations for all the terms of the integrand, so the expression is easily integrated numerically by as many steps as we like ( typically, 10,000 ). We can use the numerical integral formula (7.21) :

κ_{G ′} (X) \equiv \frac{1}{X . N} . \sum_{0 . Δ x}^{N . Δ x} {cos}^{2} φ . F ′ (x) . 2 x

(20.3)

20.4 Restoring to unit thrust

In section 11.3 we restored the cos² φ distribution to unit thrust by inflating it by the inverse of the overall thrust loss factor κ_φ : We can do the same for the G ′ (x) distribution (20.1). This yields :

\frac{G ′}{κ_{G ′}} = \frac{{cos}^{2} φ . F ′ (x)}{κ_{G ′}}

(20.4)

Figure 20.4 shows the result. It is the equivalent of figure 11.2, but this time including the Prandtl tip loss for a two bladed propeller.

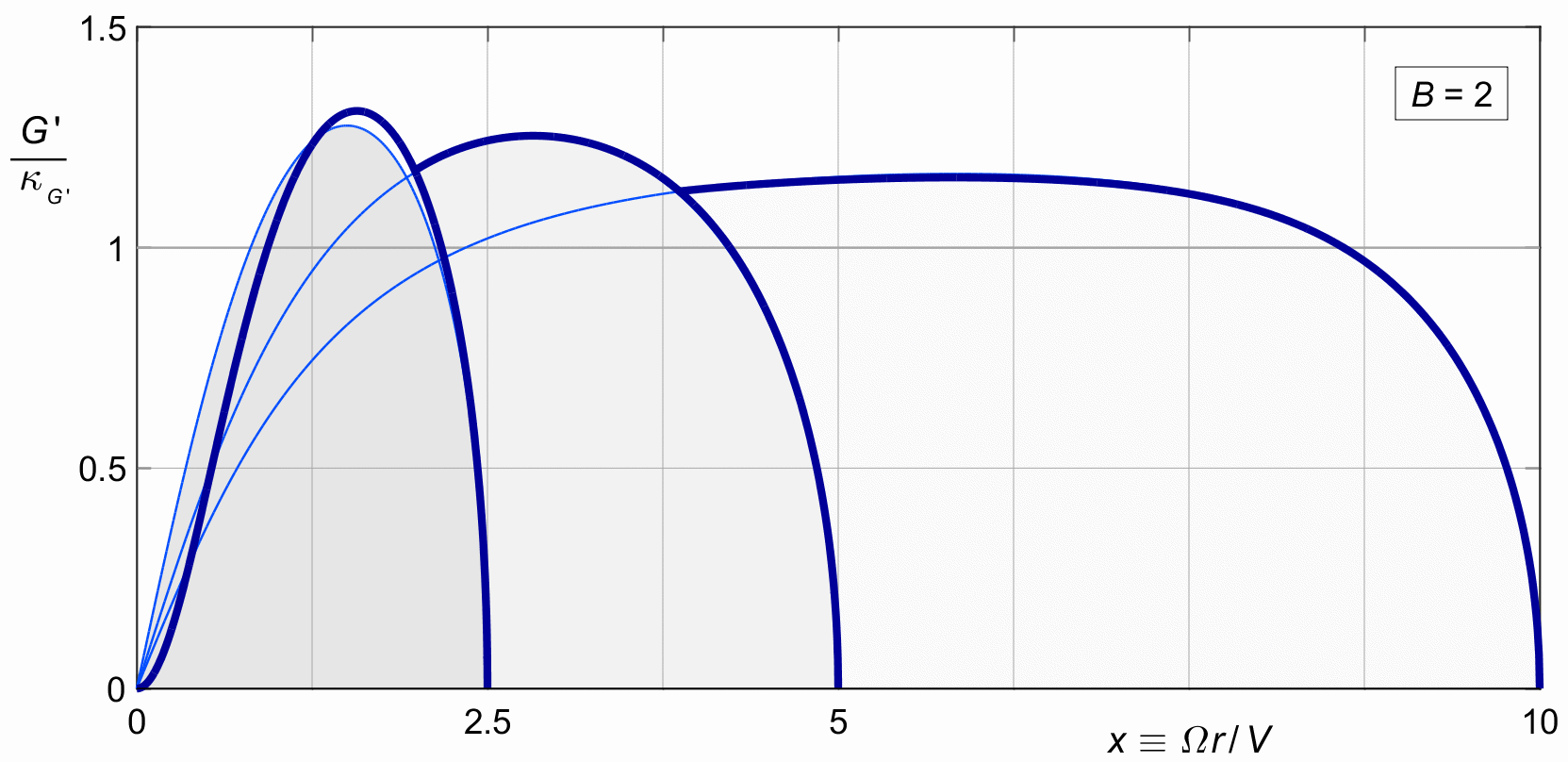

Figure 20.4 : Optimal local thrust for normalized overall thrust, with tip loss.

Figure 11.2 repeats figure 10.1, but this time for cos²φ / κ_φ . This normalizes the reduction factor to an average of 1 over the whole blade. In other words, it replaces the reduction by cos²φ of (10.7) by a slightly inflated version, which is a redistribution around an average of 1. The shapes in figure 11.2 all have the same unit thrust, for their particular tip speed ratio X.

< d T ′ = b (x) . m ′ = T ′ . \frac{{cos}^{2} φ}{κ_{φ}} . \frac{2 x . d x}{X^{2}}

(20.4)
